Especial extrusión soplado máquina para la botella de alta barrera
El objetivo principal de la máquina de moldeo por soplado multijugador es desentrañar la tendencia requerida de que el uso de material unido por sí solo no puede alcanzar el producto de las necesidades físicas de condensación (como resistencia al calor, estanqueidad al aire y resistencia mecánica, etc.). Esta máquina es especialmente adecuada para botellas de producción de productos químicos de alta barrera, el volumen máximo de la mercancía es una unidad de capacidad métrica. Las cabezas cuadradas de troquel simple, doble y triple miden todas por ahí, y por lo tanto los componentes de las cabezas cuadradas de troquel están hechas de acero.
- Categoría: Máquina de moldeo por soplado de extrusión especial
Descripción

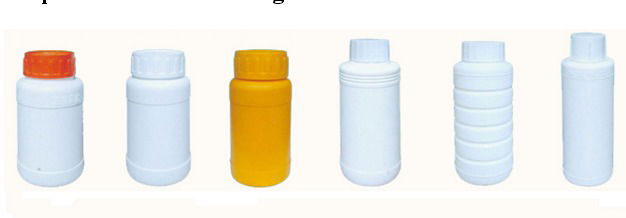

The main purpose of multiplayer blow moulding machine is to unravel the required trend that use of bound material alone cannot reach product of the condensation physical properties (such as heat resistance, air tightness and mechanical strength, etc.) needs. This machine specially appropriate for high-barrier chemical bottle of production, the utmost volume of the merchandise is one metric capacity unit. Single, double and triple die heads square measure all out there, and therefore the components of die heads square measure made up of steel.
Model Specification:
Model | Screw dia. (mm) | Plasticizing Capacity (KG/H) | Clamping force (KN) | Max. Volume of Product (L) |
HW50R-III | 50/30/30 | 50/8/8 | 50 | 1 |
HW60R-III | 60/35/35 | 80/10/10 | 80 | 2.5 |
HW70R-III | 70/40/40 | 110 | 100 | 3.5 |
HW50R-III Specification
1. Max. volume of product……………………1L
2. Extrusion system
Screw diameter(outer/middle/inner)……………………50/30/30mm
Screw L/D……………………27:1/25:1/25:1
Plasticizing Capacity……………………50/8/8kg/h
Barrel heating zones……………………3/3/3
Motor power……………………15/4/4kw
3. Clamping system
Platen dimension(W×H)……………………315×350mm
Clamping force……………………50kn
Mold platen opening stroke……………………80-330mm
4. Pneumatic system
Air supply pressure……………………0.7mpa
Work pressure……………………0.6mpa
Air consumption……………………0.4m3/min
5. Water supply pressure
Water supply pressure……………………0.2-0.3mpa
6. Power supply
Voltage……………………AC380V 10%
Frequency……………………50Hz
Wairing cable……………………Three phase four wire
Total rated power……………………50kw
Average consumption……………………26kw/h
7. Machine weight……………………5.5ton
8. Machine dimension(L×W×H)……………………3.1×2.2×2.4m
HW60R-III Specification
1. Max. volume of product……………………2.5L
2. Extrusion system
Screw diameter(outer/middle/inner)……………………60/35/35mm
Screw L/D……………………27:1/25:1/25:1
Plasticizing Capacity……………………80/10/10kg/h
Barrel heating zones……………………3/3/3
Motor power……………………18/5.5/5.5kw
3. Clamping system
Platen dimension(W×H)……………………380×450mm
Clamping force……………………80kn
Mold platen opening stroke……………………80-330mm
4. Pneumatic system
Air supply pressure……………………0.7mpa
Work pressure……………………0.6mpa
Air consumption……………………0.4m3/min
5. Water supply pressure
Water supply pressure……………………0.2-0.3mpa
6. Power supply
Voltage……………………AC380V 10%
Frequency……………………50Hz
Wairing cable……………………Three phase four wire
Total rated power……………………75kw
Average consumption……………………37kw/h
7. Machine weight……………………6.5ton
8. Machine dimension(L×W×H)……………………3.5×2.2×2.6m
HW70R-III Specification
1. Max. volume of product……………………3.5L
2. Extrusion system
Screw diameter(outer/middle/inner)……………………70/40/40mm
Screw L/D……………………27:1/25:1/25:1
Plasticizing Capacity……………………110/15/15kg/h
Barrel heating zones……………………3/3/3
Motor power……………………30/7.5/7.5kw
3. Clamping system
Platen dimension(W×H)……………………385×500mm
Clamping force……………………100kn
Mold platen opening stroke……………………250mm
4. Pneumatic system
Air supply pressure……………………0.7mpa
Work pressure……………………0.6mpa
Air consumption……………………0.4m3/min
5. Water supply pressure
Water supply pressure……………………0.2-0.3mpa
6. Power supply
Voltage……………………AC380V 10%
Frequency……………………50Hz
Wairing cable……………………Three phase four wire
Total rated power……………………95kw
Average consumption……………………50kw/h
7. Machine weight……………………8ton
8. Machine dimension(L×W×H)……………………3.5×2.2×2.8m
Note: The data in list is just for reference.
